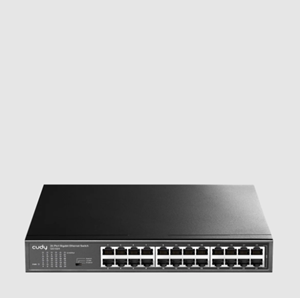

| Model Version | GS1024 3.0 |
|---|
| Interfaces | Gigabit RJ45 Ports | 24 |
|---|
| Shielded RJ45 Port | |
|---|
| Extend Mode Ports | #1~#22 |
|---|
| VLAN Mode Ports | #1~#22 |
|---|
| Buttons and LEDs | LED | - Power
- Speed/Link/Act of Each Ethernet Port
|
|---|
| Physical Buttons | VLAN/Default/Extend DIP Switch |
|---|
| Performance | Max Copper Speed and Distance | - Cat. 3 or higher cable: 100 meters at 10 Mbps
- Cat. 5 or higher cable: 100 meters at 100 Mbps
- Cat. 5e or higher cable: 100 meters at Gigabit
- Cat. 5e or higher cable: 250 meters at 10 Mbps
|
|---|
| Copper Speed and Distance Note | 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated. |
|---|
| MAC Address Table | 8192 |
|---|
| VLANs | 4096 |
|---|
| Max Switching Capacity | 48 Gbps |
|---|
| Max Forwarding Rate | 35.712 Mpps |
|---|
| Jumbo Frame | 15 KB |
|---|
| Packet Buffer | 4 Mbit |
|---|
| Power | Power Input Type | AC Inlet |
|---|
| Basic Power Saving | |
|---|
| Power Methods | AC |
|---|
| Power Input | 90-260V~ 50/60Hz |
|---|
| Max Power Consumption | 11W |
|---|
| Idle Power Consumption | 6.8W |
|---|
| Switching | 802.3 Protocols | - 802.3x Flow Control
- 802.3i 10BASE-T
- 802.3u 100BASE-TX
- 802.3ab 1000BASE-T
|
|---|
| 802.1 Protocols | 802.1p: LAN Layer 2 QoS/CoS |
|---|
| Duplex Mode | - Full Duplex
- Half Duplex (CSMA/CD)
|
|---|
| Auto-Negotiation / Auto MDI/MDIX | |
|---|
| Forwarding Method | Store-and-Forward |
|---|
| L2 Features | - IGMP Snooping
- Loop Prevention
- Loop Detection
- DSCP QoS
- 802.1p QoS
|
|---|
| Reliability | MTBF | 200,000 h |
|---|
| Grounding Methods | - Three-Prong Plug
- Grounding Point
|
|---|
| EMS | IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV |
|---|
| Environment | Operating Temperature: 0 ? ~ 40 ? (32 ? ~104 ?)
Storage Temperature: -40 ? ~ 70 ? (-40 ? ~ 158 ?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing |
|---|
| Mechanical | Dimension | 270×182×44 mm
10.63×7.17×1.73 inches |
|---|
| Product Weight | 1059 g (37.36 oz.) |
|---|
| Casing Material | Metal |
|---|
| Installation | - Desktop
- Rackmount via Brackets
|
|---|
| Package Content | - GS1024
- Power Cord
- Installation Guide
- Mounting Kit
|
|---|
| Ordering Information | Retail Package Dimension | 367×245×84 mm
14.45×9.65×3.31 inches |
|---|
| Retail Package Weight | EU: 1771 g (62.47 oz.) |
|---|
| Units per Carton | 5 |
|---|
| Carton Net Weight | EU: 8.9 kg (19.62 lbs) |
|---|
| Carton Gross Weight | EU: 9.7 kg (21.38 lbs) |
|---|
| Carton Dimension | 38×44×26.5 cm
14.96×17.32×10.43 inches |
|---|
